Yo Power MPPT Solar Charge Controller 50A 24V Lifepo4 Lithium Verision 3

The MPPT solar charge controller 50A, designed for off grid solar power system which usually install in place where no grid power or people just want use solar power independent, is our third generation device which features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. At the same timethe, low voltage disconnect function (LVD) will prevent the battery from over discharging.
1. Increase all kinds of protection function to be used more reassuring.
2. Add the LOAD sampling to be used more clear of output load.
3. Wider PV Input voltage than eSmart2 (<130V), so it suitable for more kinds of PV modules
4. Reduce the static standby self-consumption, energy saving and more simply for small system.
Choose eSmart3, more intelligent in life!fields etc.

1. Features

• High efficiency of MPPT function, more than 99.5%, whole Machine conversion efficiency upto 98%
• PWM charging technology with 3 charging stages
• DC output control is variety, manual control, PV control, Time control, PV+Time control and so on
• Customers can choose battery types: (Flooded, Sealed lead acid, Gel battery) charging, Other types of the batteries can also be defined
• Most information could be provide by LCD, such as System type, PV input voltage, PV input current, Day/Month/Total generated energy, battery type, battery voltage, charging current, charging power, Load current, Load power and so on
• RS485 communication, we can offer communication protocol also, it’s convenient for user’s integration management
• CE, RoHS, FCC certifications approved. We can help clients to approve other certifications
• 2 years warranty. And 3~10 years extended warranty service also can be provided.

2. Parameters

3. Application

This MPPT Solar Charge Controller 50A is an intelligent controller which widely use for off grid solar power system, such as streetlight solar system, RV solar system, monitoring system and others

4. Packing information

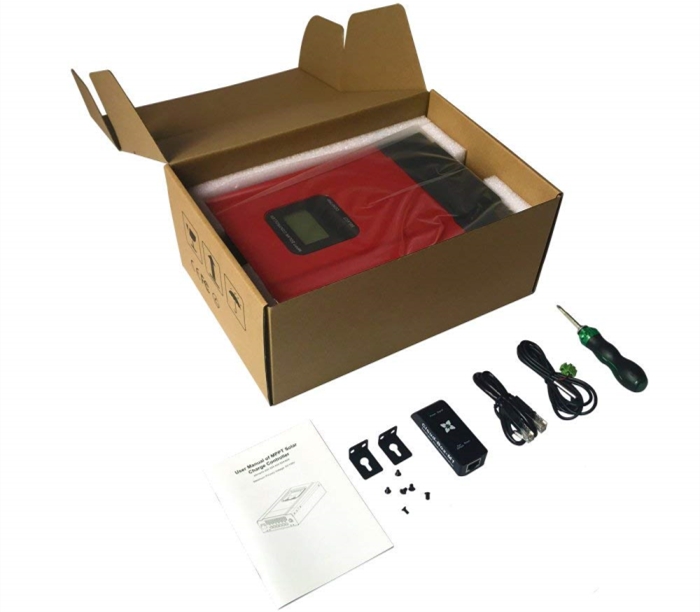

Package Including:
50A MPPT Solar Charge Controller*1pcs
Screwdriver*1pcs
Hang Bracket*2pcs
Temperature Sensor*1pcs
