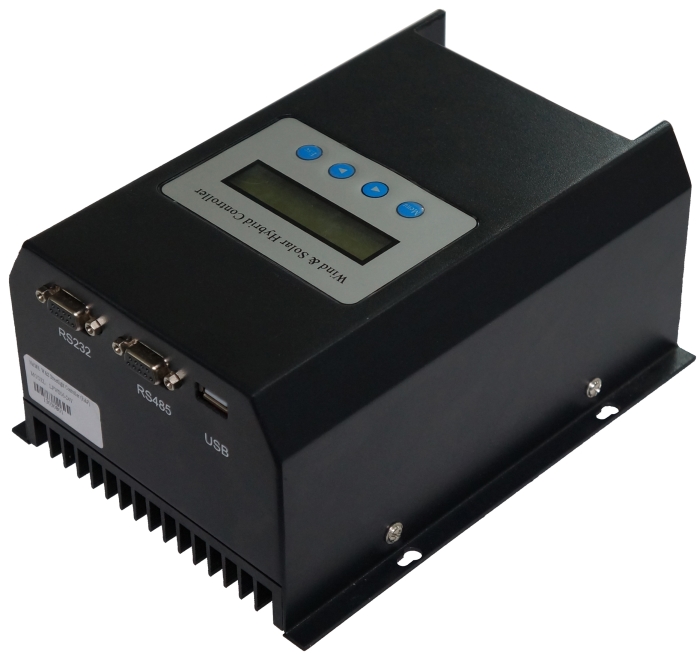

Yo Power 600W Wind Solar Hybrid Controller 12V ( 400W Wind + 200W Solar )

This wind solar hybrid controller 12V is designed specifically for wind solar hybrid system, can make the wind solar hybrid system of various resources to achieve the best configuration. This model suitable for hybrid system with 400W wind generator, 200W solar panel and 12V battery.

1. Features

1.1 Basic Functions

• Wind Turbine and Load Adaptive Impedance Matching, maximize energy utilization

There is internal resistance in Wind generators, batteries and loads. According to impedance matching principle, only when input impedance equals to output impedance, power utilization is maximal, get the maximum power

• Protect wind generator from over-revolution speed, over-voltage and over-current

Max revolution speed, max voltage and max current of wind generator could be set. Once the actual revolution speed, voltage or current over the set ones, PWM intelligent unloading will start automatically. That protect wind generator

• Intelligent limiting of batteries max current

Batteries maximum capacity could be set through this controller. According to the set maximum capacity, controller could calculate the maximum charging current. Then batteries will be protected

• Function of manual brake
• Wind charging manual switch
• Solar charging manual switch
• TWO DC output, each one has nine output control modes
• DC output manual switch
• Boost&buck function in one

1.2 Optional Function

• USB function
• RS232 interface
• RS485 interface
• Anemometer function

2. Parameters

• Remark 1: The parameters are marked in Red color can be adjusted by users according to different requirement of different battery
• Remark 2: This kind 600W wind solar hybrid charge controller suitable to small power system, especially streetlight and monitoring system, if you have wind generator and solar panel different from the power listed, please feel free to contact us for right model.

3. Application

Off grid wind solar hybrid system

Streetlight system

Monitoring system
