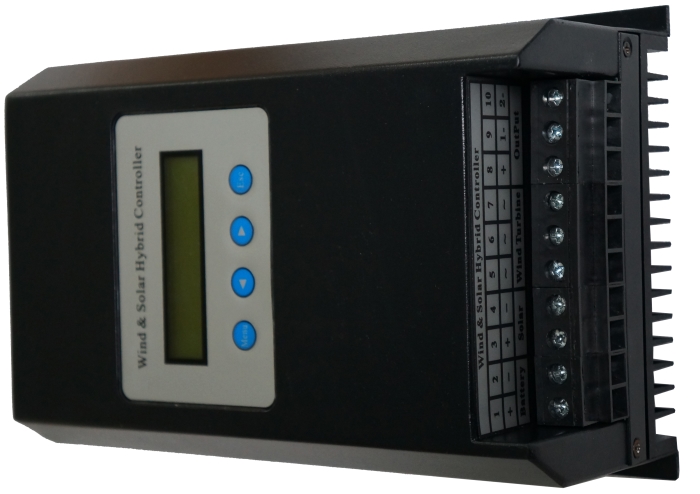

Yo Power Intelligent 600W MPPT Wind Solar Hybrid Controller 24V Boost

This intelligent 600W MPPT wind solar hybrid controller 24V is designed for small off grid wind solar hybrid generation system. It has two DC output so it is very suitable for streelight&monitoring integrated system. This model choose boost technology for wind charging. It is suitable for wind generator which output voltage is very small

1. Features

1.1 Basic Functions

• Wind Turbine and Load Adaptive Impedance Matching, maximize energy utilization

There is internal resistance in Wind generators, batteries and loads. According to impedance matching principle, only when input impedance equals to output impedance, power utilization is maximal, get the maximum power

• Protect wind generator from over-revolution speed, over-voltage and over-current

Max revolution speed, max voltage and max current of wind generator could be set. Once the actual revolution speed, voltage or current over the set ones, PWM intelligent unloading will start automatically. That protect wind generator

• Intelligent limiting of batteries max current

Batteries maximum capacity could be set through this controller. According to the set maximum capacity, controller could calculate the maximum charging current. Then batteries will be protected

• Function of manual brake
• Wind charging manual switch
• Solar charging manual switch
• TWO DC output, each one has nine output control modes
• DC output manual switch
• Boost charging technology for wind charging

1.2 Optional Function

• USB function
• RS232 interface
• RS485 interface
• Anemometer function

2. Parameters

• Remark 1: The parameters are marked in Red color can be adjusted by users according to different requirement of different battery
• Remark 2: This wind solar hybrid controller 24V works with 24V battery bank system, if you have wind solar hybrid generation power system but don't know how to choose controller, please share the information of wind generator and solar panel in the system, we will recommend right model for you base on these information

3. Application
Off grid wind solar hybrid system
Streetlight system
Monitoring system
