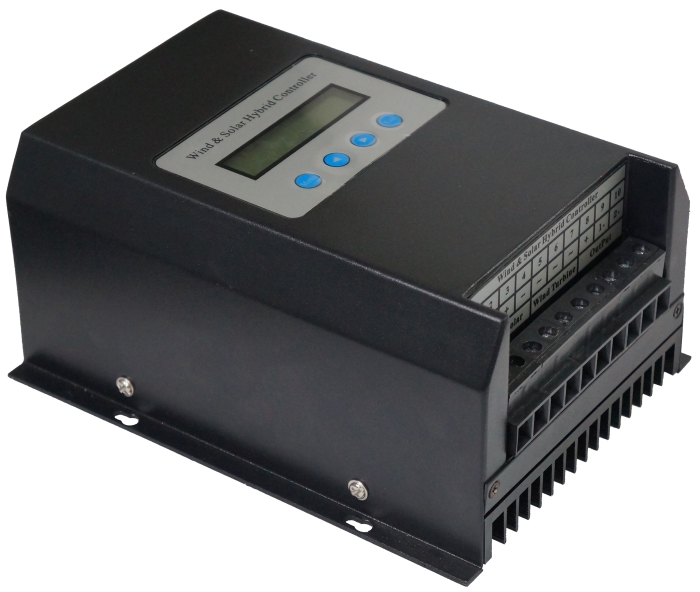

    800 Watt Wind Energy Charge Controller 48V With LCD Display Boost

    Ask Lasest Price
    Brand Name : Yo Power Electrical
    Model Number : YQHLM series
    Certification : CE, ROHS, FCC
    Price : Negotiable
    Payment Terms : L/C, D/A, Western Union, T/T, MoneyGram, Paypal
    Supply Ability : 1000 units/month
    Delivery Time : Within 3 days for 1~10 units
    • Product Details
    • Company Profile

    800 Watt Wind Energy Charge Controller 48V With LCD Display Boost

    Yo Power 800W Wind Solar Hybrid Controller 48V With LCD Display Boost

    This 800W wind solar hybrid charge controller is designed for wind solar hybrid generation system. It works for the total power (wind+solar) not exceed 800W and with 48V battery bank system. This model choose Boost technology for wind charging, it means this hybrid controller will boost the output voltage of wind generator to charging battery even the wind speed is too slow.

    1. Features

    1.1 Basic Functions

    • Wind Turbine and Load Adaptive Impedance Matching, maximize energy utilization

    There is internal resistance in Wind generators, batteries and loads. According to impedance matching principle, only when input impedance equals to output impedance, power utilization is maximal, get the maximum power

    • Protect wind generator from over-revolution speed, over-voltage and over-current

    Max revolution speed, max voltage and max current of wind generator could be set. Once the actual revolution speed, voltage or current over the set ones, PWM intelligent unloading will start automatically. That protect wind generator

    • Intelligent limiting of batteries max current

    Batteries maximum capacity could be set through this controller. According to the set maximum capacity, controller could calculate the maximum charging current. Then batteries will be protected

    • Function of manual brake
    • Wind charging manual switch
    • Solar charging manual switch
    • TWO DC output, each one has nine output control modes
    • DC output manual switch
    • Boost&buck function in one

    1.2 Optional Function

    • USB function
    • RS232 interface
    • RS485 interface
    • Anemometer function

    2. Parameters

    Model

    YQHLR02-06/48

    YQHLR03-05/48

    YQHLR04-04/48

    Rated system voltage48V
    Rated wind generator power200W300W400W
    Rated solar panel power600W500W400W
    Max. input voltage of solar panel160V
    Battery low voltage disconnect40.8V
    Battery low voltage reconnect46V
    Equalize charging voltage58.8V
    Equalize charging recovery voltage52.8V
    Float charging voltage54V
    Over load voltage68V
    Over load recovery voltage60V
    Wind dumpload rotate speed500R
    Wind pole logarithm10D
    Wind starting charging voltage20V
    Wind dumpload voltage100V
    Rated output current10A
    1st output working modelPV control (light on: 6V, light off: 6V) (Adjustable)
    2nd output working modelPV control on, full power working for 5hrs, light control off (adjustable)
    Dump load control model

    Over rotate speed limiting, over voltage limiting, Over current limiting, PWM

    Wind charging technologyMPPT (Boost&Buck)
    Solar charging technologyPWM
    DisplayLCD
    Display content

    Battery: voltage, charging current, battery power
    Wind: voltage, charging current, rotate speed, output current&power
    Solar: voltage, charging current
    System: status, generation power, error code

    Ambient temperature-20℃~55
    Humidity35~85%, non-condensing
    Standy by consumption≤3W
    Protection type

    Battery: over-discharge, over-charge, anti-reverse connection
    Wind: Over rotate speed, over voltage, over current

    Controller size203*152*97.4mm
    N.W2.1KG
    Packing size290*170*190mm
    G.W2.5KG
    Optional functionRS232, RS485, USB, Anemometer
    Warranty2 years
    • Remark 1: The parameters are marked in Red color can be adjusted by users according to different requirement of different battery
    • Remark 2: If you don't know how to choose a right controller for your wind solar hybrid generation system, please feel free to share details about the wind generator and solar panel in the system, then we will recommend right model for you.

    3. Application
    Off grid wind solar hybrid system
    Streetlight system
    Monitoring system
