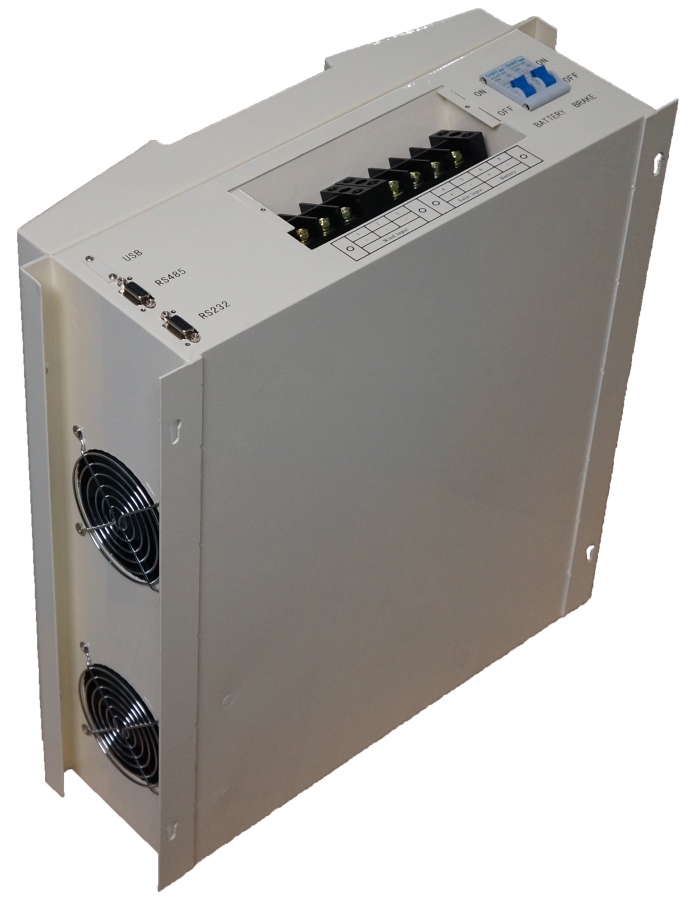

Yo Power 24V Wind And Solar Hybrid Controller With 1KW Wind And 900W Solar

This wind and solar hybrid controller is designed for 24V wind solar hybrid generation station with 2KW wind generator and 900W solar panel

1. Features

1.1 Basic Functions

• Wind Turbine and Load Adaptive Impedance Matching, maximize energy utilization

There is internal resistance in Wind generators, batteries and loads. According to impedance matching principle, only when input impedance equals to output impedance, power utilization is maximal, get the maximum power

• Protect wind generator from over-revolution speed, over-voltage and over-current

Max revolution speed, max voltage and max current of wind generator could be set. Once the actual revolution speed, voltage or current over the set ones, PWM intelligent unloading will start automatically. That protect wind generator

• Intelligent limiting of batteries max current

Batteries maximum capacity could be set through this controller. According to the set maximum capacity, controller could calculate the maximum charging current. Then batteries will be protected

• function of manual brake
• Wind charging manual switch
• Solar charging manual switch

1.2 Optional Function

• USB function
• RS232 interface
• RS485 interface
• Anemometer function

2. Parameters

• Remark 1: the parameters are marked in Red color can be adjusted by users according to different requirement of different battery
• Remark 2: This model wind solar hybrid controller suitable for off grid wind solar hybrid system with 3000W wind generator and 900W solar panel, if you have different power of solar panel and wind generator, please feel free to contact us for right model.

3. About the dump load

Because the wind generator power not exceed 5KW, so the dump load is inside the controller

4. Application

Off grid wind solar hybrid system

Independent Wind generation system
