96V 3KW Wind And Solar Hybrid System Controller With 2KW Wind + 1KW Solar

This 3KW wind and solar hybrid system controller, designed for 3KW off grid wind solar hybrid system with 2KW wind turbine and 1KW solar panel, is an intelligent control device with LCD display and RS232 communication. It adopts boost technology for wind charging, which means if the output voltage of wind generator is low than battery voltage, the controller still can charging battery with wind power.

1. Features

1.1 Basic Functions

• Wind Turbine and Load Adaptive Impedance Matching, maximize energy utilization

There is internal resistance in Wind generators, batteries and loads. According to impedance matching principle, only when input impedance equals to output impedance, power utilization is maximal, get the maximum power

• Protect wind generator from over-revolution speed, over-voltage and over-current

Max revolution speed, max voltage and max current of wind generator could be set. Once the actual revolution speed, voltage or current over the set ones, PWM intelligent unloading will start automatically. That protect wind generator

• Intelligent limiting of batteries max current

Batteries maximum capacity could be set through this controller. According to the set maximum capacity, controller could calculate the maximum charging current. Then batteries will be protected

• Function of manual brake
• Wind charging manual switch
• Solar charging manual switch

1.2 Optional Function

• USB function
• RS232 interface
• RS485 interface
• Anemometer function

2. Parameters

• Remark 1: The parameters are marked in Red color can be adjusted by users according to different requirement of different battery
• Remark 2: If you have wind solar hybrid system project but don't know how to choose the controller, please share the information of wind generator and solar panel in the system to us, we will recommend right model for you

3. About the dumpload
The dump load is inside the controller because the wind generator power small than 5KW

4. Application
Off grid wind solar hybrid system
Independent Wind generation system

Hefei Yo Power Electrical Technology Co., Ltd is a high-tech enterprise and focuses on solar energy, wind energy and other renewable power source. Our factory was founded in 2015 but our team has more than 11 years' experience in designing & producing solar controller, off grid inverter and solar power system. Our factory located in Hefei National High-tech Industrial Development Zone which is supported by APEC.

The products we offer are professional for solar and hybrid power solutions, where people don't have grid power or simply want to be independent from grid power and other fossil energy sources. Our products and engineering services bring clean and reliable energy for a wide variety of applications.

We at Yo Power are passionate about continuously upgrading product standards. With more than 11 years' experience in the off-grid market, we bring our customers not only benefit from advanced technology, but also from maximized system power output, reliability and cost-effectiveness.

R & D Department:

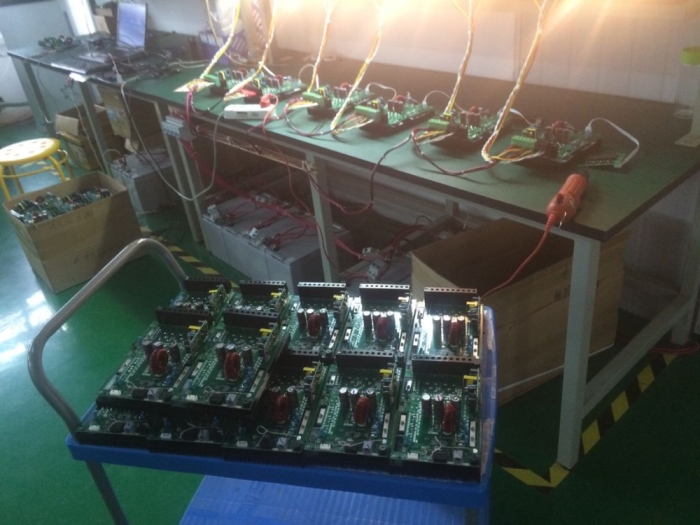

Testing Department
