| Brand Name : | Yo Power Electrical |
| Model Number : | YQLI-W9 series |
| Certification : | CE, ROHS, FCC |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, Western Union, T/T, MoneyGram, Paypal |
| Supply Ability : | 1000 units/month |
| Delivery Time : | With 3 days for 1~10 units |

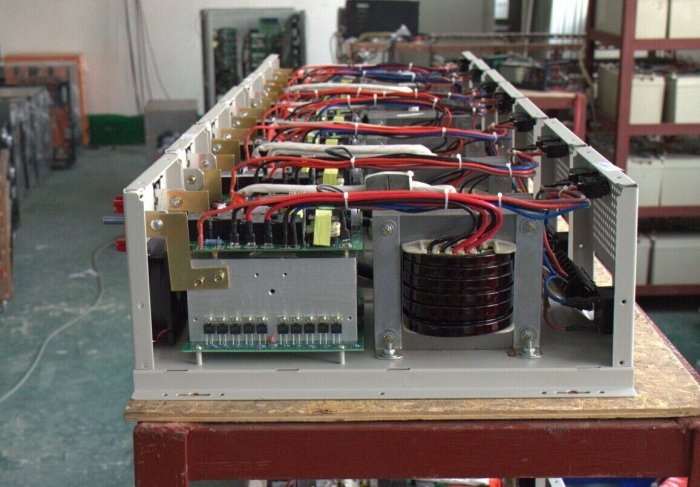

Low Frequency Pure Sine Wave Inverter 1000W 2000W 3000W 4000W 5000W 6000W
1. General features
2. Exclusive features
3. Parameters
| Rated power | 1KW | 2KW | 3KW | 4KW | 5KW | 6KW |
| Rated system voltage | 12V/24V/48V Optional | 24V/48V optional | ||||
| Peak power | 3 times | |||||
| Output form | Pure Sine Wave Form | |||||
| Inverter efficiency | ≧85% | |||||
| DC input information | ||||||
| Low voltage alarm | 10.5V (12V), 21V (24V), 42V (24V) | |||||
| Low voltage disconnect | 10V (12V), 20V (24V), 40V (24V) | |||||
| Over voltage alarm | 15V (12V), 30V (24V), 60V (48V) | |||||
| Over voltage disconnect | 16.7V (12V), 33.4V (24V), 66.8V (48V) | |||||
| AC input information | ||||||
| AC input voltage range | 170275VAC, 186~300VAC, 85~138VAC, 93~150VAC or customized | |||||
| AC input frequency | 45~65Hz | |||||
| AC charging current | C0: 0A, C1:5A, C2:10A, C3:15A, C4:20A, C5:25A, C6:30A | |||||
| Battery type | U0:GEL USA, U1:AGM1, U2:AGM2, U3:Sealed Lead Acid, U5:Open Lead Acid, U6:Calcium (open), U7:De sulphation cycle 15.5 for 4 hrs | |||||
| Output information | ||||||
| Output voltage (battery model) | According to user's demand | |||||
| Output voltage (Mains model) | Same to the AC input voltage, Tracking automatically | |||||
| Frequency | According to user's demand (battery model) or same to the AC power frequency (mains model, tracking automatically) | |||||
| Other information | ||||||
| Working model | 01: Normal model (mains first with AC charging) 02: Energy saving model (load power<10%, shut down output, load power >11%, turn on output) 03: Battery first without AC charging (when battery voltage >13V, battery supply power for load, when battery power <10.5V, mains power supply power for load, the switch time between battery/mains power is small than 4ms | |||||
| Display | LCD | |||||
| Display language | English | |||||
| Cooling method | Intelligent control, when inverter inside temperature≦42℃, the fan rotates slowly to 45℃, the fan rotates fast | |||||
| Communication | RS232 (Optional) | |||||
| Ambient temperature | -10℃~40℃ | |||||
| Humidity | <95% | |||||
| Dimension (mm) | 440*220*183 | 484*245*212 | 540*30*262 | |||
| N.W (kg) | 15 | 24.5 | 28 | 44 | 49 | 50 |
| Packing size (mm) | 535*268*230 | 580*290*260 | 630*355*310 | |||
| G.W (kg) | 17 | 27 | 30 | 47 | 51 | 53 |
4. Application
Off grid power system
Solar power system
AC power as complementary system
|
|
